To check the SNMP reachability using MIB browser
Site24x7 On-Premise Poller uses SNMP to monitor and collect performance metrics from the monitored devices.
Please follow the steps below to check if a network device or a server is reachable through SNMP, from the On-Premise Poller using the bundled MIB browser:
- Open the Command Prompt as an administrator. From the administrator command prompt, go to the directory where the On-Premise Poller is installed. If the Command Prompt isn't opened as an administrator, an Access is denied error message is displayed.
- Then navigate to ../Site24x7OnPremisePoller/Networkplus/bin folder
- Execute the MibBrowser.sh or MibBrowser.bat file
- Set the SNMP credentials with respect to the version.
- For SNMP v1, set the host, port, and the SNMP community.
- For SNMP v2, click Edit > Settings > Change the SNMP version > Ok. Set the host, port, and the SNMP community.
- For SNMP v3, click Edit > Settings > Change the SNMP version > Add. Set the host, port, username, authentication credentials and click Ok.
- Then, navigate the RFC1213-MIB to org.dod.internet.mgmt.mib-2.system.sysObjectID (or) set the value for Object ID field to .1.3.6.1.2.1.1.2
- Now click on the Get SNMP variable icon (7th icon from left) below the menu bar
- Please check if the device details are fetched successfully.
If a timeout occurs, please check if
i) the host name, port, and the SNMP community are specified correctly
ii) there is a firewall blocking SNMP connection
iii) the On-Premise Poller is on the same network as the device.
There are also chances for the On-Premise Poller to not be on the list of hosts that are allowed to query the device through SNMP. Please check the SNMP configuration on the device for the same. Click here to know more about MIB browser errors.
Alternative steps:
If the MIB browser is inaccessible or fails to work, SNMP command line tools can be used to check the SNMP reachability.
If the MIB browser is inaccessible or fails to work, SNMP command line tools can be used to check the SNMP reachability.
Install the required packages:
Fedora/Centos: yum install net-snmp-utils
Ubuntu: apt-get install snmp
> snmpwalk -v [1/2c/3] -c <Read_Community> <IP_Address >
Example: snmpwalk -v 1 -c public 10.10.10.1
Note: If the SNMP port is not default 161, Please specify the correct port in the above command as IP_Address:Port
Example: 10.10.10.1:601
Related article:
Related Articles
Troubleshooting data collection issues while using SNMP v3 credentials
When data collection stops, check: If data collection has stopped for only a particular device or for all devices. If any out of memory (OOM) files are present in the following folder: {poller directory}/NetworkPlus/bin folder The credential ...How to share the SNMP v3 request logs to analyze credential issues
The Site24x7 support team is available to assist you with solving SNMP v3 request credential issues. To troubleshoot the issue, we need you to capture SNMP v3 request logs data and send it to us. This article describes the process to capture this ...How to find the Device Identifier (sysOID) using MIB browser?
The managed objects in an MIB are called object identifiers (object IDs or OIDs). OIDs are identifiable by strings of numbers separated by dots. Open an MIB browser and configure SNMP settings. You can find the sysOID using the MIB browser. Open the ...Troubleshooting steps in case of performance counter test failure or value mismatch

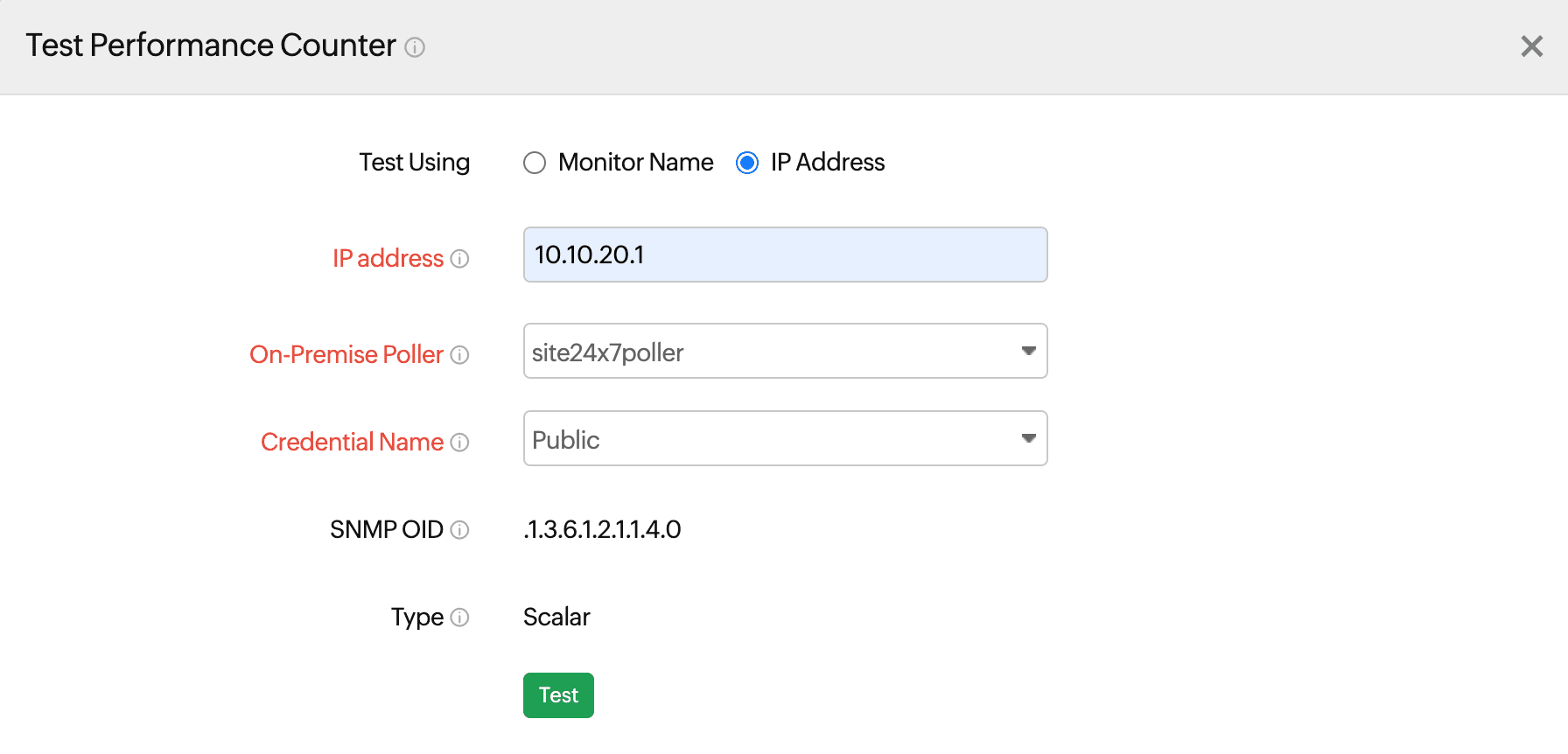

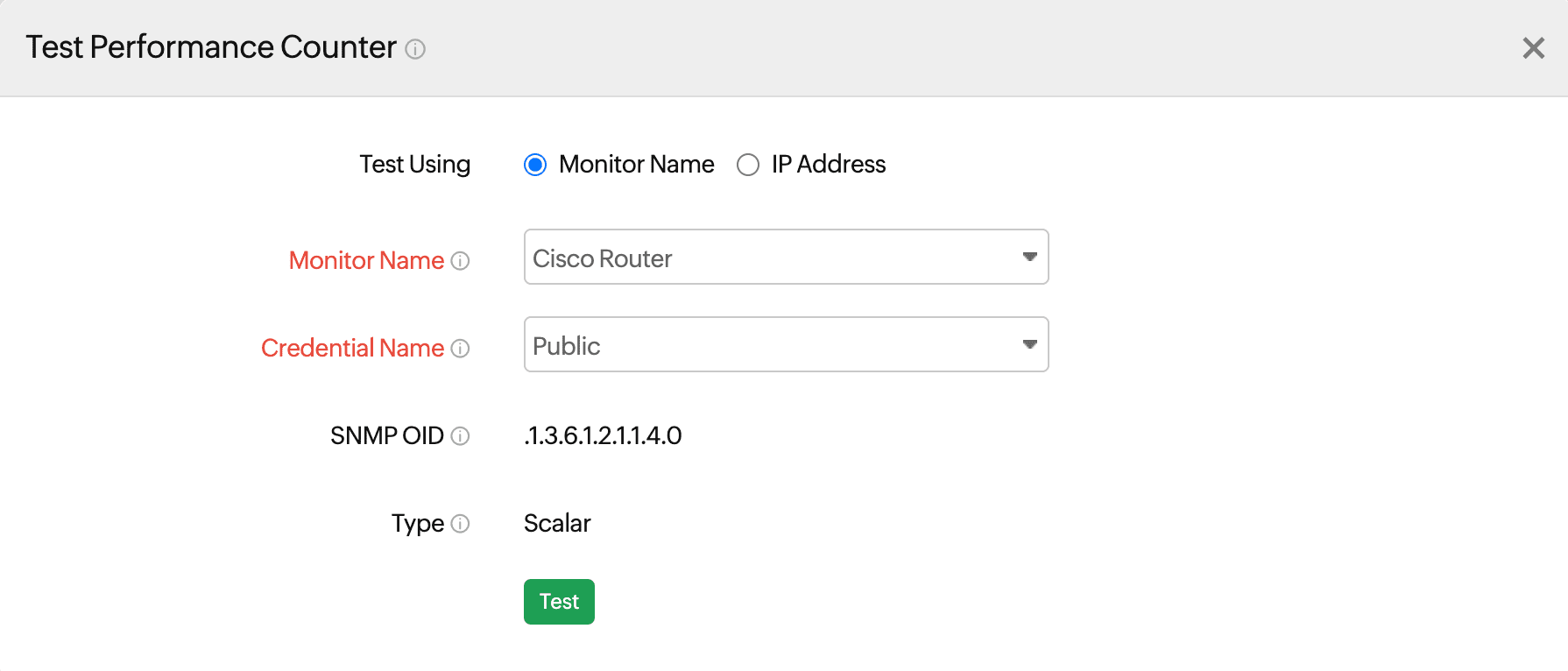

From the Site24x7 web client, go to Network > Network Device . Click on the desired device name and go to the Performance Counters tab. Click Test on the desired performance counter. Copy the Device Identifier/OID from the Test Performance Counter ...Prerequisites for supporting On-Premise Poller in Web Transaction (Browser) and Web Page Speed (Browser)
