Set thresholds in bulk for multiple interfaces monitored in a network device
Purpose:
To configure threshold values in bulk for interface attributes like In Traffic, In Packets, etc, in a particular network device and get alerted when the value is <, <=, >, >= the configured value.
Steps to follow:
- Login to your Site24x7 account.
-
Go to Network Device.
-
Navigate to the Monitor Dashboard page by clicking on the name of the respective device.
-

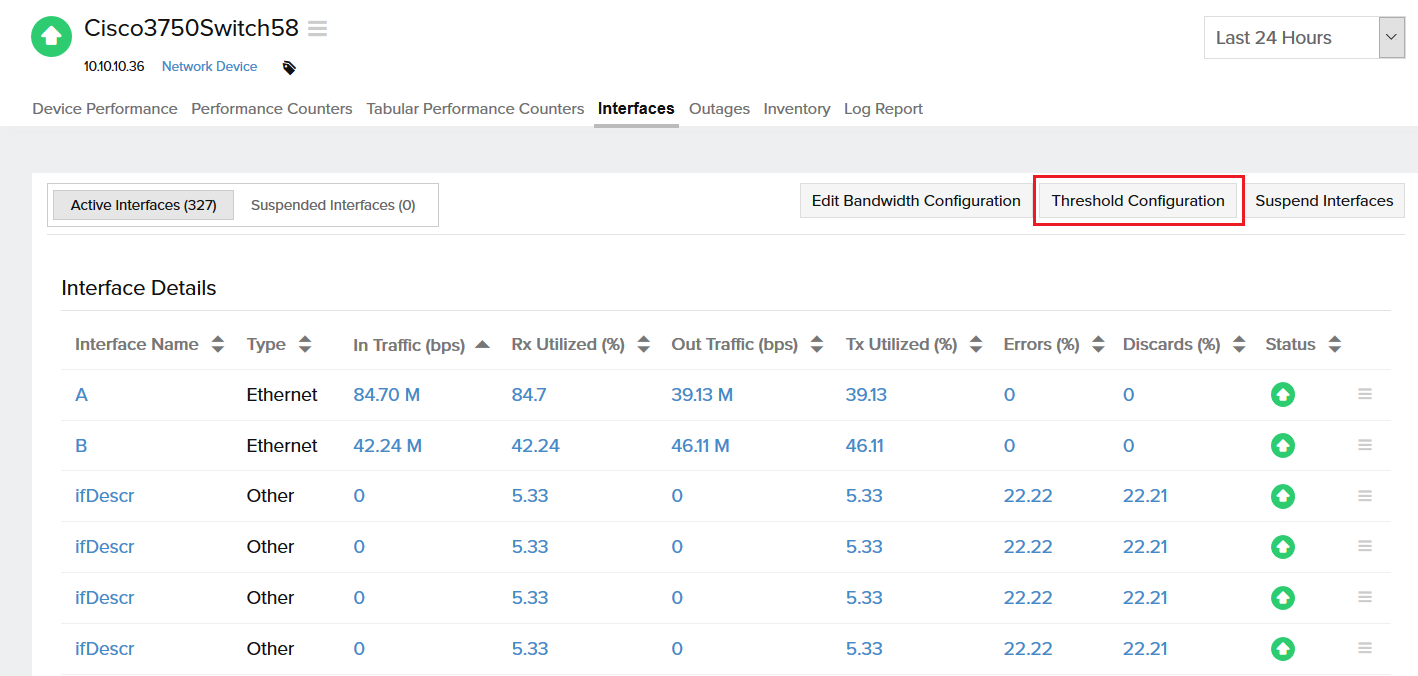

Click on the Interfaces tab.
-
Click on the Threshold Configuration button.

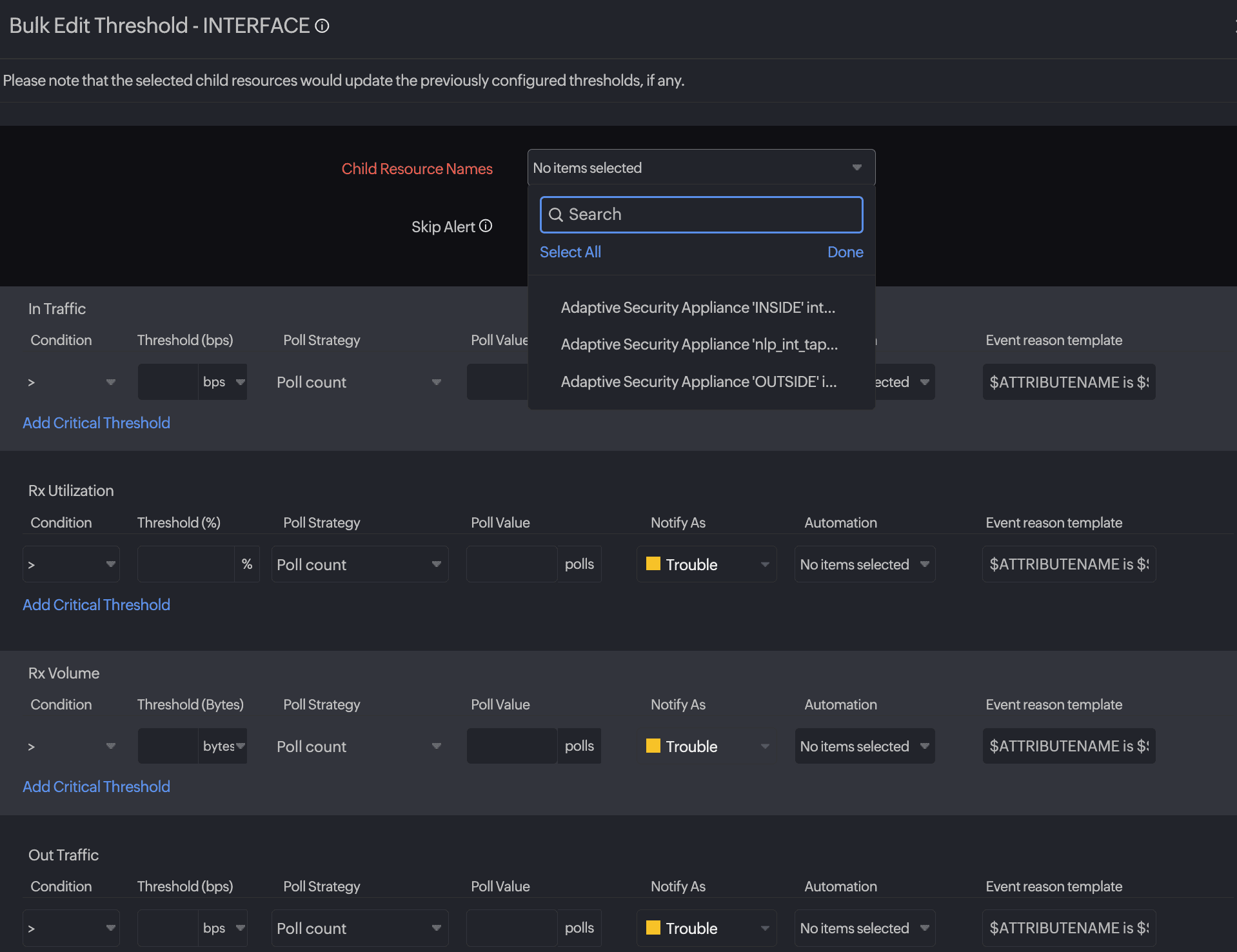

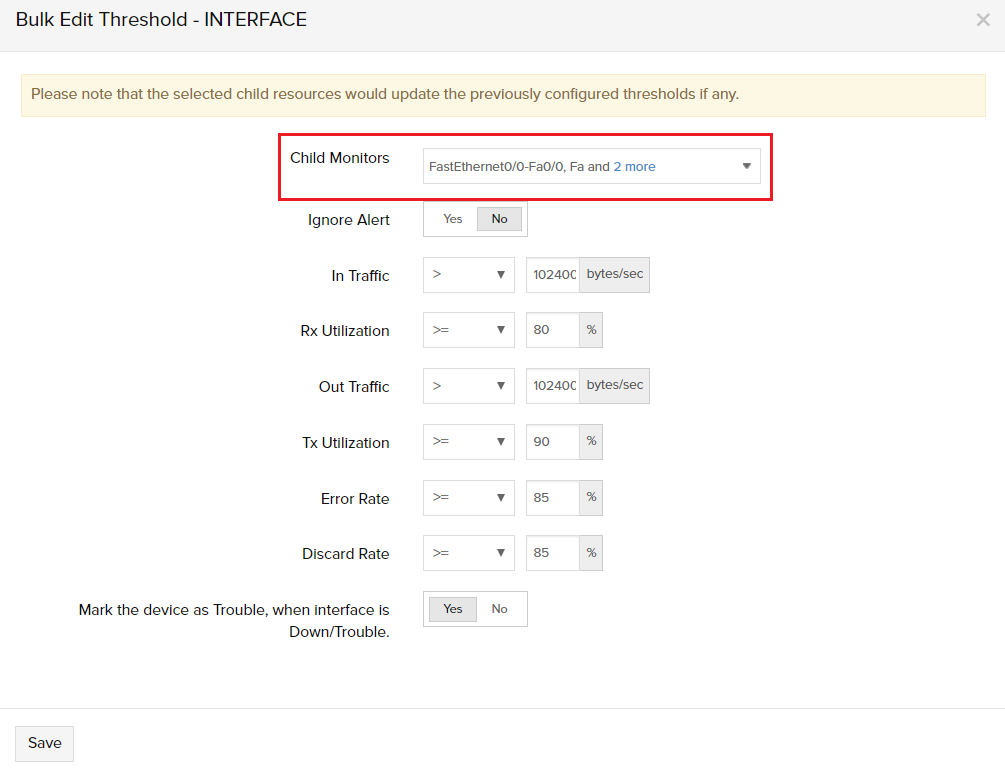

- In the pop-up, click on the drop-down menu corresponding to Child Monitors.
-
Select the desired interfaces for which you wish to bulk update the threshold.
- Fill the required fields.
- Save the changes.
