How to check the connectivity to Site24x7 servers from my Windows machine?

There are two ways to check if you are connected to the Site24x7 data center:

Method 1: via the Tray icon

1. Once the Windows monitoring agent is installed, a tray icon appears in the quick launch bar. The tray icon is also listed in Start > All Programs > Site24x7 Windows Monitor > Tray Icon.

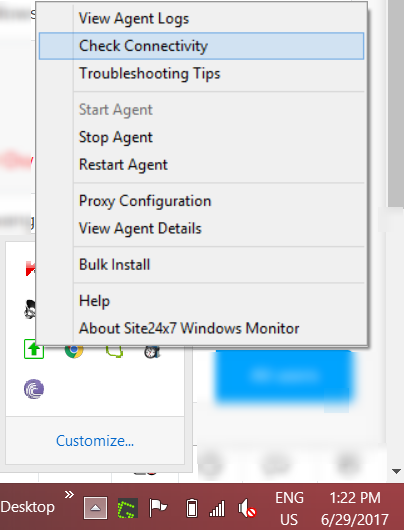

2. Right click on the icon > Check Connectivity.

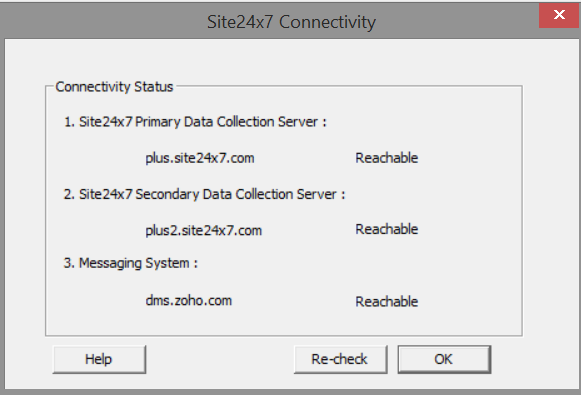

3. You can now check the status of your connectivity to all our domains.





Note: If the message appears as Not Reachable, click on Help and make sure the ports, domains necessary for agent communication has been configured right.

Method 2: check in IE

1. Go to Internet Explorer and type in https://plus.site24x7.com (.eu, .cn, .in, .net.au) or https://plus2.site24x7.com (.eu, .cn, .in, .net.au). This would tell you if there is connectivity between the Site24x7 data center and your machine.
